Product Review: APL UV 2840

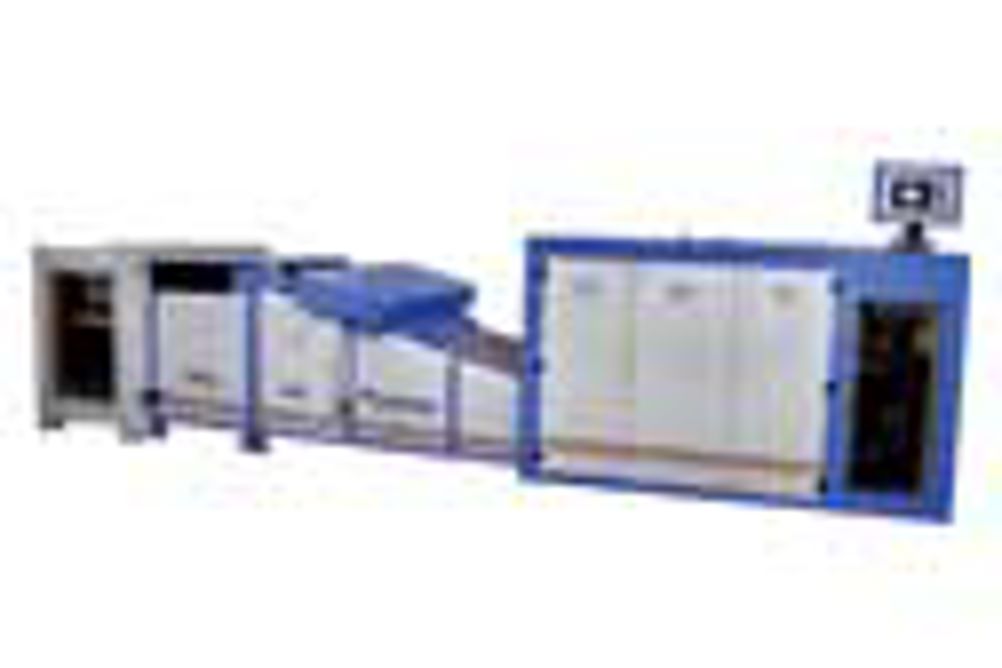

This UV curing machine can do full and spot UV coating on thick and thin paper. This machine includes all technological solutions for increasing the productivity, finds Sachin Shardul

APL Machinery launched the fully automatic UV coating and curing system in 2003 and double station UV curing system in 2009.

APL Machinery (earlier known as Abhishek Print Line), is a leading manufacturer and exporter of printing and screen printing machines, both for flat and round surface. Its machines boost of a highly productive and economical, giving excellent and quality results that printers invest in, when they want finishing options in-house.

C P Paul, managing director at APL Machinery, says: "We launched the double station offline UV coater with a speed of 6,000 copies per hour at PrintPack 2011, as it was an important platform for the printing industry as many firms introduced their latest global technologies during the show."

Paul added: "We are even planning to showcase it at IGAS, Japan, as we feel that there is big potential in the Japanese market due to a lot of transformation taking place in that country. Besides, we are trying to increase the speed of this machine to 10,000 cph so that printers can get better value for money."

APL has an installation base of more than 70 in the domestic and international market, print companies like Cheema Print Pack, Ruchira Packaging, Masterlin, Nova Publication, Paper Dream, T-Series, Suban Prints, Express Printing have invested in the APL coater.

UV curing unit
The curing system is attached with this machine which is equipped with two UV lamps and three IR lamps having throughout vacuum bed on conveyor. The delivery and the stacking unit is developed in-house with the great efficiency for handling the papers.

Lamps are enclosed in an irriDator reflector which has a separate extended imported reflector with good cooling system for better lamp life. UV and IR lamps are from one of the best manufacturer in the world with running hour warranty.

For operation of lamps, the control system is equipped with half power and full power system.

Paul says: "Supplying goods of highest quality has always been the top most priority for us. Based on international standards, our quality systems ensure that our products fully comply with the standards and customer specifications. Having vast experience in this industry, we are not merely a quality-oriented supplier but also an on-time delivery partner as we meet the stickiest delivery schedules."

Robust Structure
The machine is compact and solid built on a strong CI frame. It is reliable at any working speed. This machine is equipped with high grade hardened grounded for its smooth operation for years.

Rajiv Kapoor, chief executive officer at APL Machinery, says: "The compact design and robust structure is an added advantage. It not only increases the life but also offers smooth operation."

New plant
APL Machinery will soon be shifting to their new factory, a two-acre facility in Prithla. This new facility is 10 km from their existing facility in Faridabad.

Rajiv Kapoor, chief executive officer at APL Machinery, says: "The factory is being built in an area of 65,000 sq/ft area with latest machineries for the production of machines involving an investment of around Rs 20-crore."

SPECIFICATIONS

Maximum sheet size
725 mm x 1016 mm
Minimum sheet size
350 mm x 450 mm
Coating area
700 mm x 1000 mm
Pile height feeder
1000 mm
Paper weight
80 to 500 gsm
Power (coater)
6.2 KW
Power (UV dryer)
26 KW
Power (IR dryer)
12 KW
Maximum speed
6000/10,000 sheets per hour

Contact

APL Machinery
C P Paul
+91 (0)129 4189999
cppaul@gmail.com
